Motorised Lubrication Systems
Motorised Lubrication units are electric motor driven pumps along with reservoir, oil filter & breather, suction strainer, pressure relief valve & bleed valve etc. The units installed are suitable for Single Shot Automatic Oil Lubrication. These motorised Lubrication Units are to be run intermittently only.
During Motors ON time (Normally 5 seconds) all the metering cartridges eject out predetermined amount of oil at various points of the machine. And during motors OFF period (selectable) the metering cartridges get recharged for the the next Lubrication Cycle.
If desired, these units can be supplied without float & pressure switch as per customer requirements. Units for liquid grease (fluid grease) are also manufacturerd.

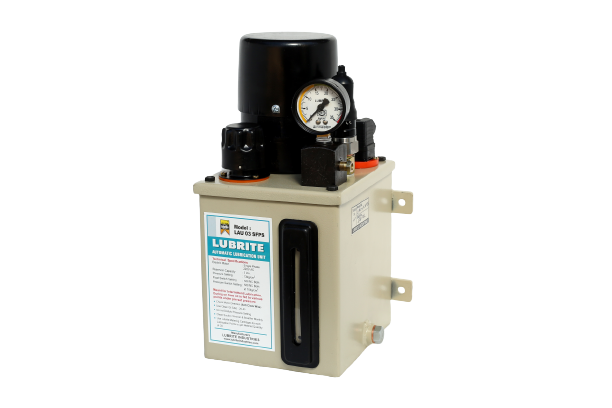

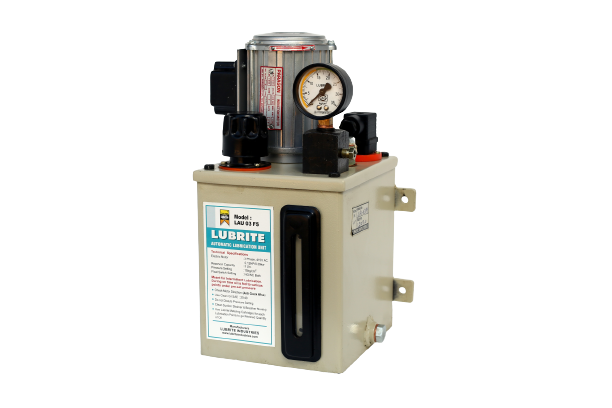

LAU 03 FPS
LAU 03 SFPS

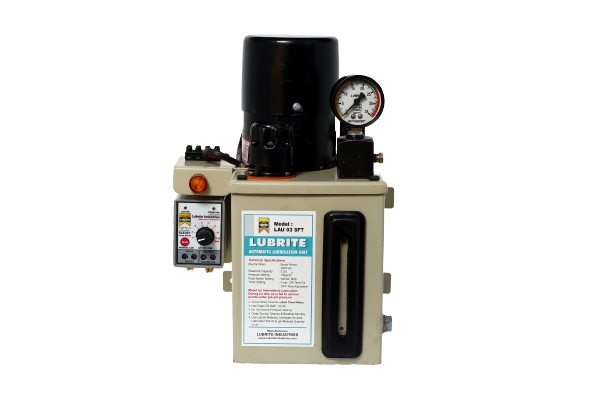

LAU 03 SFT

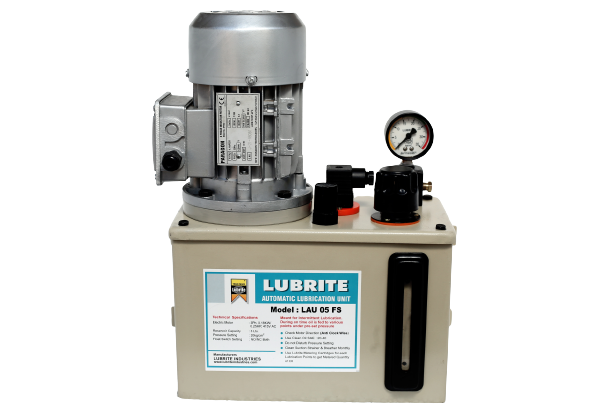

LAU 05 FS
LAU 08 FS
Technical Specification
MODEL | RESERVOIR CAPACITY IN SHEET METAL | DISCHARGE OF PUMP | MOTOR | FLOAT, PRESSURE SWITCH & TIMER | RELIEF VALVE SETTING AT | PRESSURE SWITCH SETTING AT | OVERALL Dimensions in mm LxBxH | Mounting Details in mm Hor x Ver |
---|---|---|---|---|---|---|---|---|
LAU 03 S | 3 LTR. | 1 LPM | 1 PH, 220 V, 90 W | X | 13 KG | X | 190x190x320 | 170x100 |
LAU 03 SFS | 3 LTR. | 1 LPM | 1 PH, 220 V, 90 W | FLOAT SWITCH | 13 KG | X | 190x190x320 | 170x100 |
LAU 03 SFPS | 3 LTR. | 1 LPM | 1 PH, 220 V, 90 W | FLOAT & PRESSURE SWITCH | 13 KG | 10KG/PER SQ. CM | 190x190x320 | 170x100 |
LAU 03 SFT | 3 LTR. | 1 LPM | 1 PH, 220 V, 90 W | FLOAT SWITCH & TIMER | 13 KG | X | 235x190x320 | 170x100 |
LAU 03 FPS 110V | 3 LTR. | 1 LPM | 1 PH, 110V, 90 W | FLOAT & PRESSURE SWITCH | 13 KG | 10KG/PER SQ. CM | 190x190x320 | 170x100 |
LAU 03 | 3 LTR. | 1 LPM | 3 PH, 415 V, 0.09 KW | X | 15 KG | X | 190x190x320 | 170x100 |
LAU 03 FS | 3 LTR. | 1 LPM | 3 PH, 415 V, 0.09 KW | FLOAT SWITCH | 15 KG | X | 190x190x320 | 170x100 |
LAU 03 FPS | 3 LTR. | 1 LPM | 3 PH, 415 V, 0.09 KW | FLOAT & PRESSURE SWITCH | 15 KG | 12KG/PER SQ. CM | 190x190x320 | 170x100 |
LAU 03FPS 220 V | 3 LTR. | 1 LPM | 3 PH, 220 V, 0.09 KW | FLOAT & PRESSURE SWITCH | 15 KG | 12KG/PER SQ. CM | 190x190x320 | 170x100 |
LAU 05 | 5 LTR. | 1 LPM | 3 PH, 415 V, 0.18 KW | X | 20 KG | X | 330x170x400 | 310x100 |
LAU 05 FS | 5 LTR. | 1 LPM | 3 PH, 415 V, 0.18 KW | FLOAT SWITCH | 20 KG | X | 330x170x400 | 310x100 |
LAU 05 FPS | 5 LTR. | 1 LPM | 3 PH, 415 V, 0.18 KW | FLOAT & PRESSURE SWITCH | 20 KG | 15KG/PER SQ. CM | 330x170x400 | 310x100 |
LAU 05 FPS 220 V | 5 LTR. | 1 LPM | 3 PH, 220 V, 0.18 KW | FLOAT & PRESSURE SWITCH | 20 KG | 15KG/PER SQ. CM | 330x170x400 | 310x100 |
LAU 05 SFT | 5 LTR. | 1 LPM | 1 PH, 220 V, 90 W | FLOAT SWITCH & TIMER | 15 KG | X | 375x170x330 | 310x100 |
LAU 05 SFPS | 5 LTR. | 1 LPM | 1 PH, 220 V, 90W | FLOAT & PRESSURE SWITCH | 15 KG | 13KG/PER SQ. CM | 330x170x330 | 310x100 |
LAU 08 | 8 LTR. | 3 LPM | 3 PH, 415 V, 0.18 KW | X | 25 KG | X | 350x200x430 | 330x100 |
LAU 08 FS | 8 LTR. | 3 LPM | 3 PH, 415 V, 0.18 KW | FLOAT SWITCH | 25 KG | X | 350x200x430 | 330x100 |
LAU 08 FPS | 8 LTR. | 3 LPM | 3 PH, 415 V, 0.18 KW | FLOAT & PRESSURE SWITCH | 25 KG | 20KG/PER SQ. CM | 350x200x430 | 330x100 |
LAU 08 FPS 220 V | 8 LTR. | 3 LPM | 3 PH, 220 V, 0.18 KW | FLOAT & PRESSURE SWITCH | 25 KG | 20KG/PER SQ. CM | 350x200x430 | 330x100 |
